Quick Overview
1966-1968 Scout 800 with 7/8" diameter spring and shackle hanger bushings. Please inspect the shackle hanger on the frame carefully.
Kit Includes:
-USA made leaf springs (4)
-BCB heavy duty welded and painted shackles (4)
-Grade 8 USA made u-bolts (8)
-BCB 2.5 degree front Steel caster shims 2.5 degree (2)
-Skyjacker Shocks (4)
-BCB Spring & Shackle hardware kit (12 bolts/12 top lock nuts)
-Polyurethane spring bushings (8)
-Polyurethane Shackle Hanger Bushings (4)
-BCB SS braided extended brake lines (3 front, 1 rear)
-BCB Grade 8 Zink coated leaf spring center pack bolts (2)

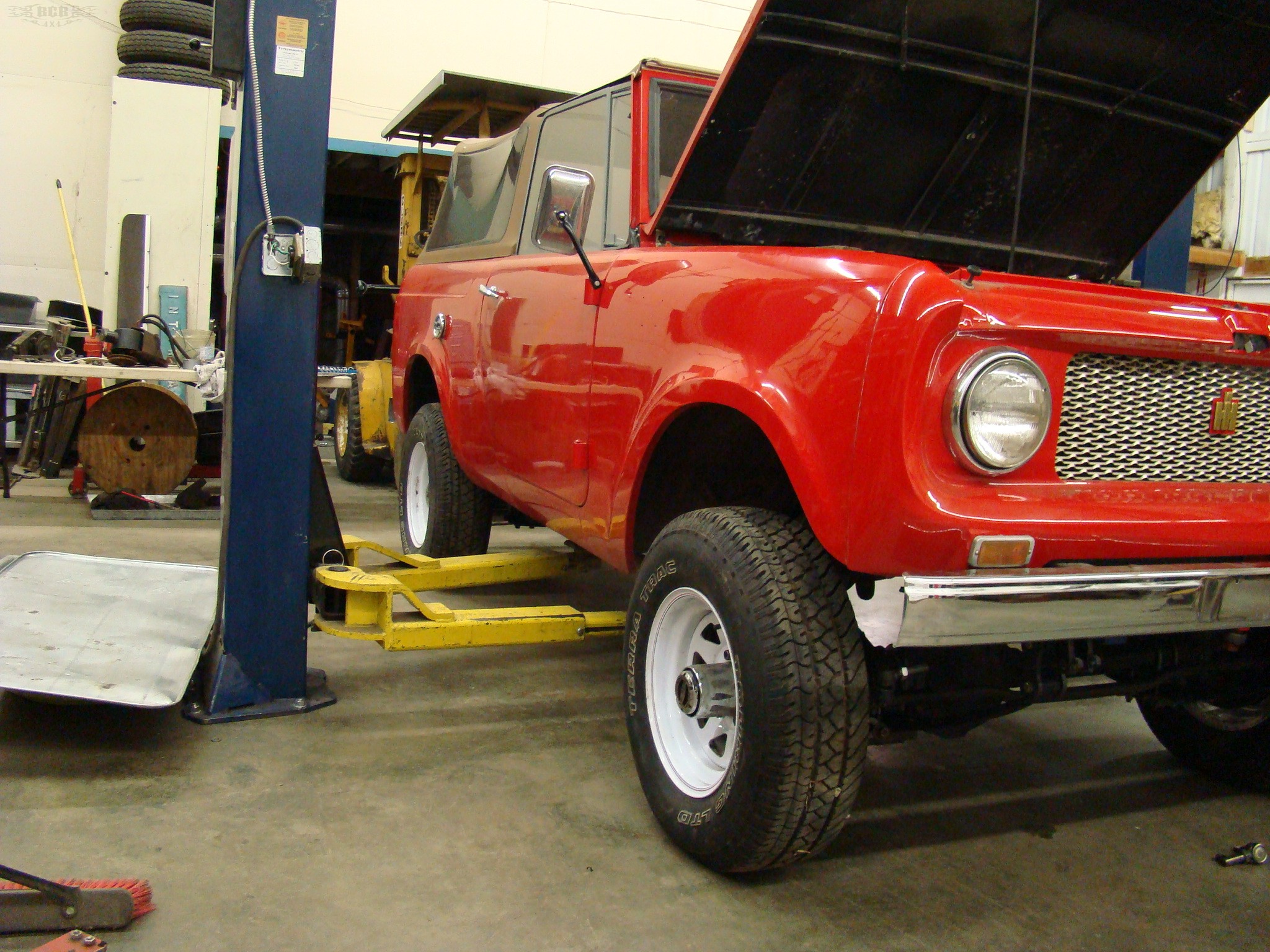

These springs will give your Scout a superior ride quality and driving experience. The reason they are far superior is the diamond cut and tapered ends on each leaf, the bolt style clamps, the shop peening in the at rest position to relieve stress, and the made in the USA quality. They do well both on and off road. The high carbon steel used in construction of these USA made springs make them a lasting solid upgrade for your comfort. 31" -33" tires will fit depending on brand and width of tire. The 33"x10:50-15 will rub under full compression, but one of our body lifts will raise the wheel wells up to keep that from happening. The other option would be some extended bump stops for the up-travel. Your scout will ride better than it did from the factory. The tires in this picture are 29" so there is more wheel well showing. The lift arms are free so it is sitting on its own weight. The springs and ride quality will settle in 1000 miles or so. If this is not the best lift kit you have ever used for your Scout 80 or 800 we will be shocked as I have researched ever other option out there in the leaf spring world. 100's of customers cant be wrong. Let us know what you think after you have it and use it for a month or so. Thank you. QUALITY AT AN AFFORDABLE PRICE!!
