Quick Overview
This 2" wide leaf spring kit was originally designed for the 1972-1980 Scout 2, Traveler, and Terra but has been redesigned to be universal to many axles in many rigs. This 2” wide leaf spring kit has the 2.75" u-bolts for the IH Scouts and other 2.75" diameter axle tube equipped axles. These are CNC laser cut to our unique design. Then put in fixtures to weld up and assure a perfect fit. Afterwards they are cut, ground, and sanded to insure a snag free and rock ramped bottom profile. Lastly the shock tab is welded on. Next they get inspected and all weld spatter is removed. They are now ready for you to apply a durable paint or powder coat finish to protect the raw steel.
1. You Gain 1-5/8" ground clearance over the stock plates. Thats like 3" larger tire clearance under the spring pack.
2. Upgrades you to 5/8" U-bolts over the stock 7/16"
3. Fully captivates the spring pack allowing removal of the stock spring clamps for more vertical leaf spreading articulation.
4. Constructed of 3/8" Steel with a 1/4" steel shock tab for superior strength over the puny factory 1/8" steel thats prone to cracking on originals
5. Moves the shock up further out of harms way allowing more down travel of the suspension.
6. Can be used in SOA or SUA configuration.
7. Utilizing the rock ramp profile on the bottom allows less snagging up on obstacle edges.

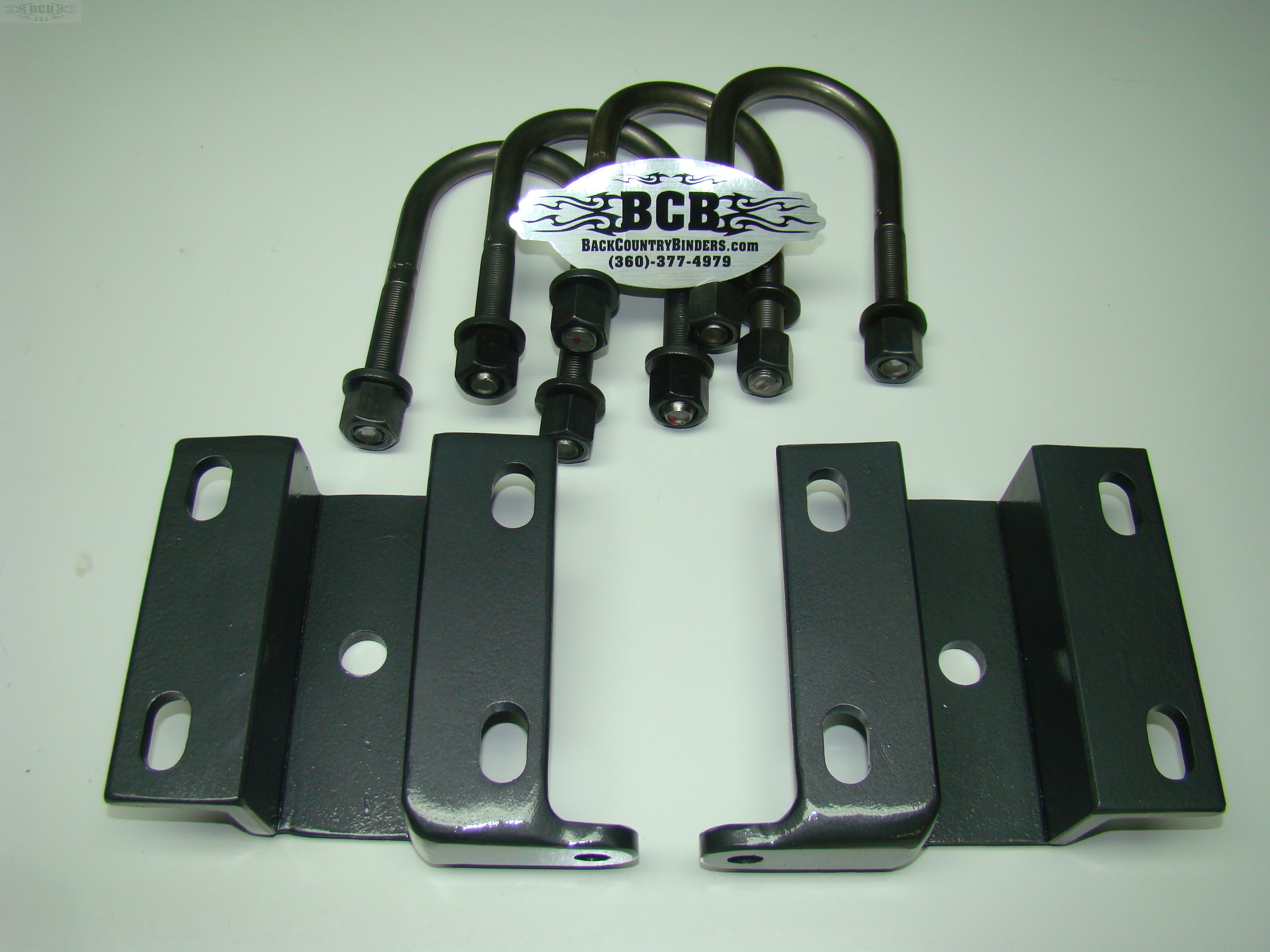

We feel these 7 features make our product the #1 choice when you want the best u-bolt spring plates for your Scout 2. The set includes (2) Plates, and (4) 2.75" U-bolts. Now you see why BCB 4x4 makes the best U-bolt plate on the market for your offroad rig!!
Future offerings will be posted with u-bolt options and 1.75", 2.5", 3" spring width options
All U-Bolt plate sets will come raw steel with a little bit of brush down and weld bb removal. Final sanding and deburring the edge to accept paint will be up to the purchaser. While we painted them for 20 years, it's just impossible to paint them 1-2 sets at a time and seeing as how we no longer have a full time welder that's only job is this and a few products where he could setup and paint 5-10 sets at a time making it feasible time wise, i just can not spend 30-40 minutes painting a set when I could be working on a customer rig for the hourly shop rate. Its all about making a living and survival. Rising rent cost, operating expenses, permits, and fees have forced us to really take a close look at how our time is best spent. Besides i need extra time to bring all the new products to market that i have been designing over the past 20 years :). Thanks for understanding.
"Quality engineered parts at affordable prices"
Customer Reviews
3 Item(s)
- gliding over rock has never been easier Review by Scout crawler
-
I installed this on my Scout and its never beed easier to glide over rocks. I had the stock junk that grabbed every rock there was so the new universal fit design was perfect. When i go to the 60 or 14 bolt i will just get larger u-bolts. If i do decide to go spring over i like that i can flip them and not lose money by haveing to buy new stuff. You truley do understand us offroaders and what we need. Thank you (Posted on 6/1/15)Price Value Quality - beefy and well designed Review by RerTop Scout
-
Greetings from Colorado, Love the kit and i definatley know its strong. The picture looks tough but once i open the box i was in awe. Killer part, cant wait to do the front next paycheck. (Posted on 6/1/15)Price Value Quality - Best available and i looked at them all. Review by SUA 77 SS2
-
BCB builds them strong. Holy crap these are beefy. I opened the box and wow is all i can say. Installed them and now have more ground clearance, oh and i took the clamps off per a conversation with John and sure enough i get better flex with no spreading out of the leafs. Should have just ordered the full kit and got rid of my "brand-X" kit.Price Value Quality
(Posted on 8/13/14)
3 Item(s)
